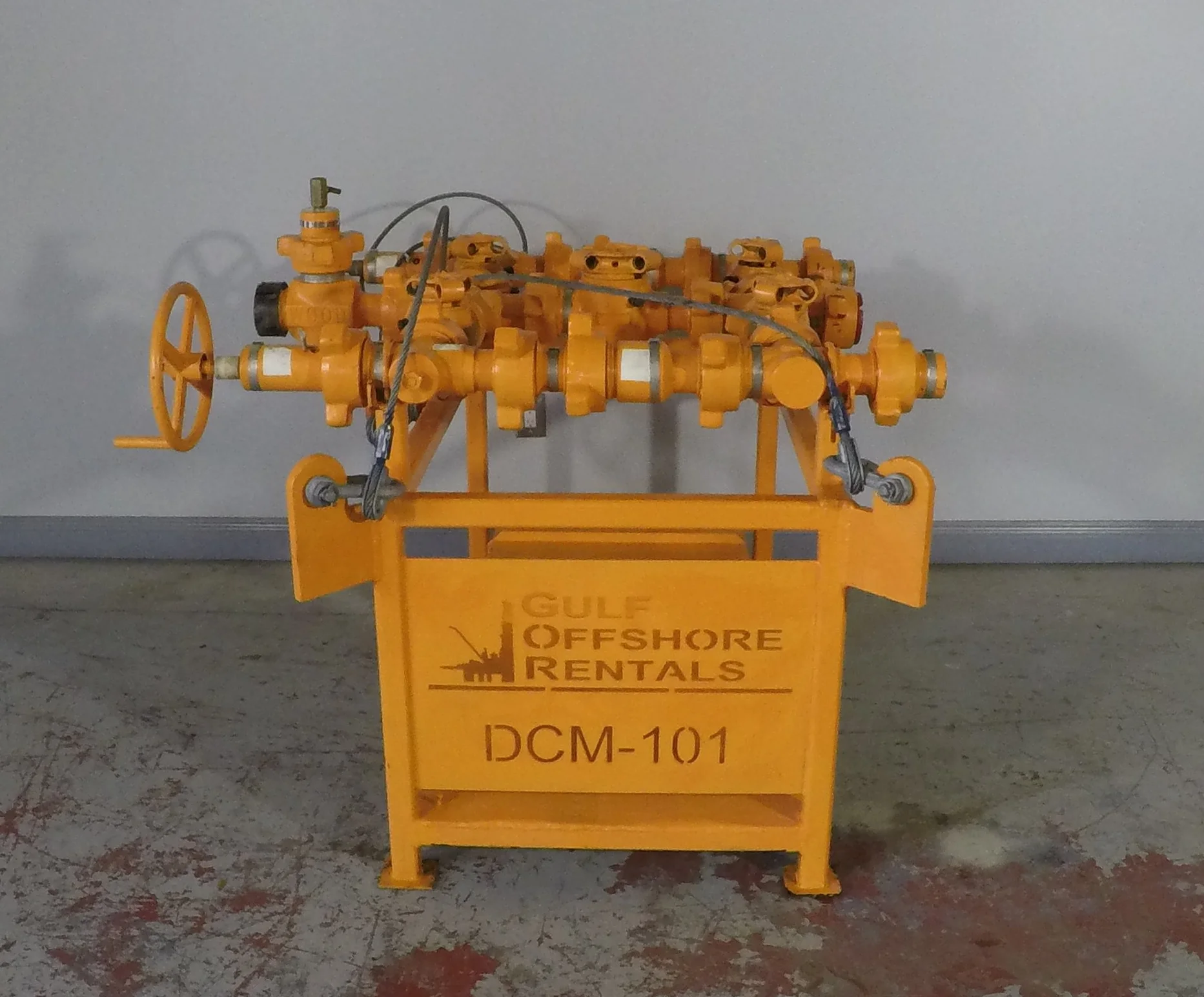

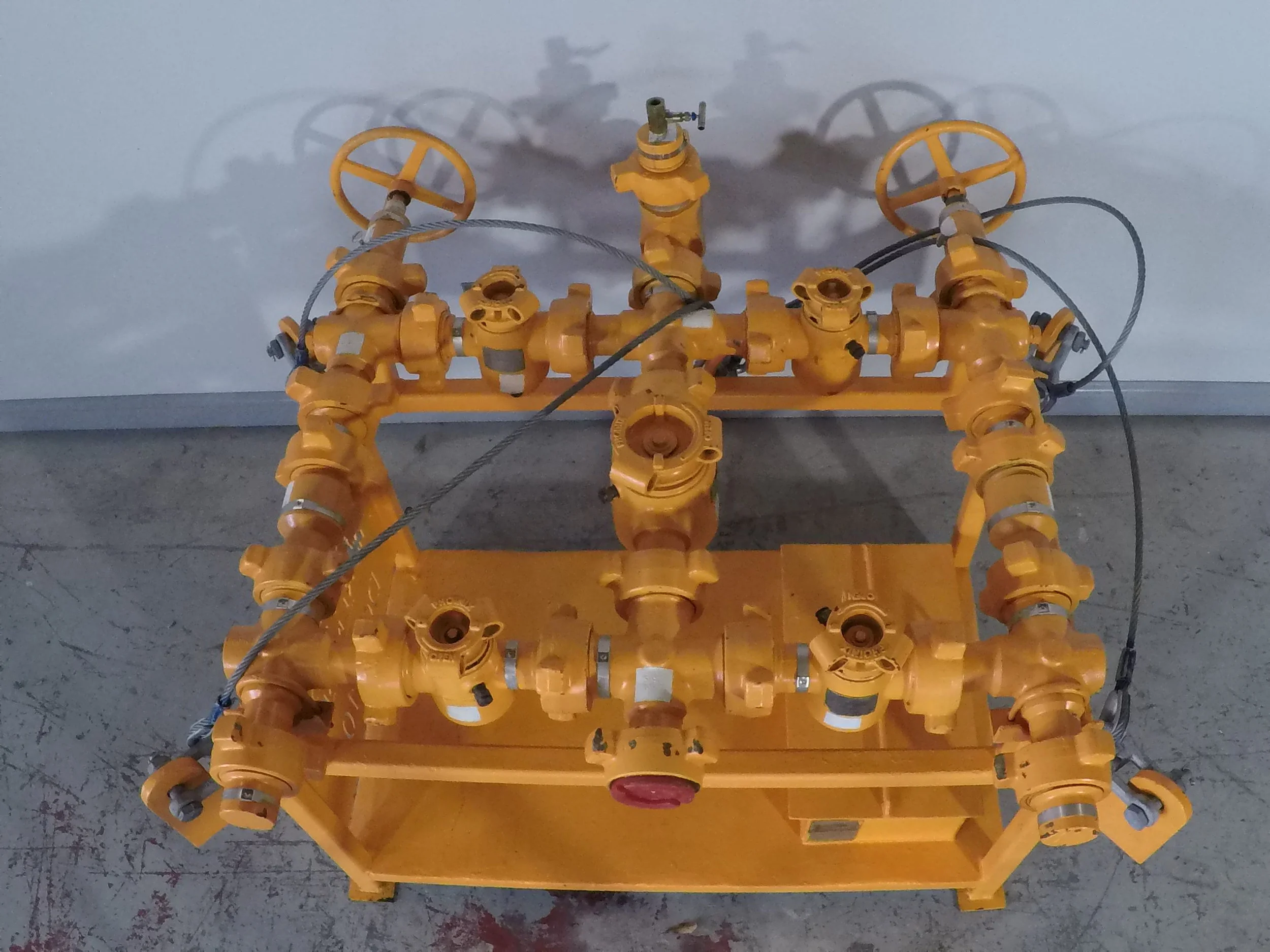

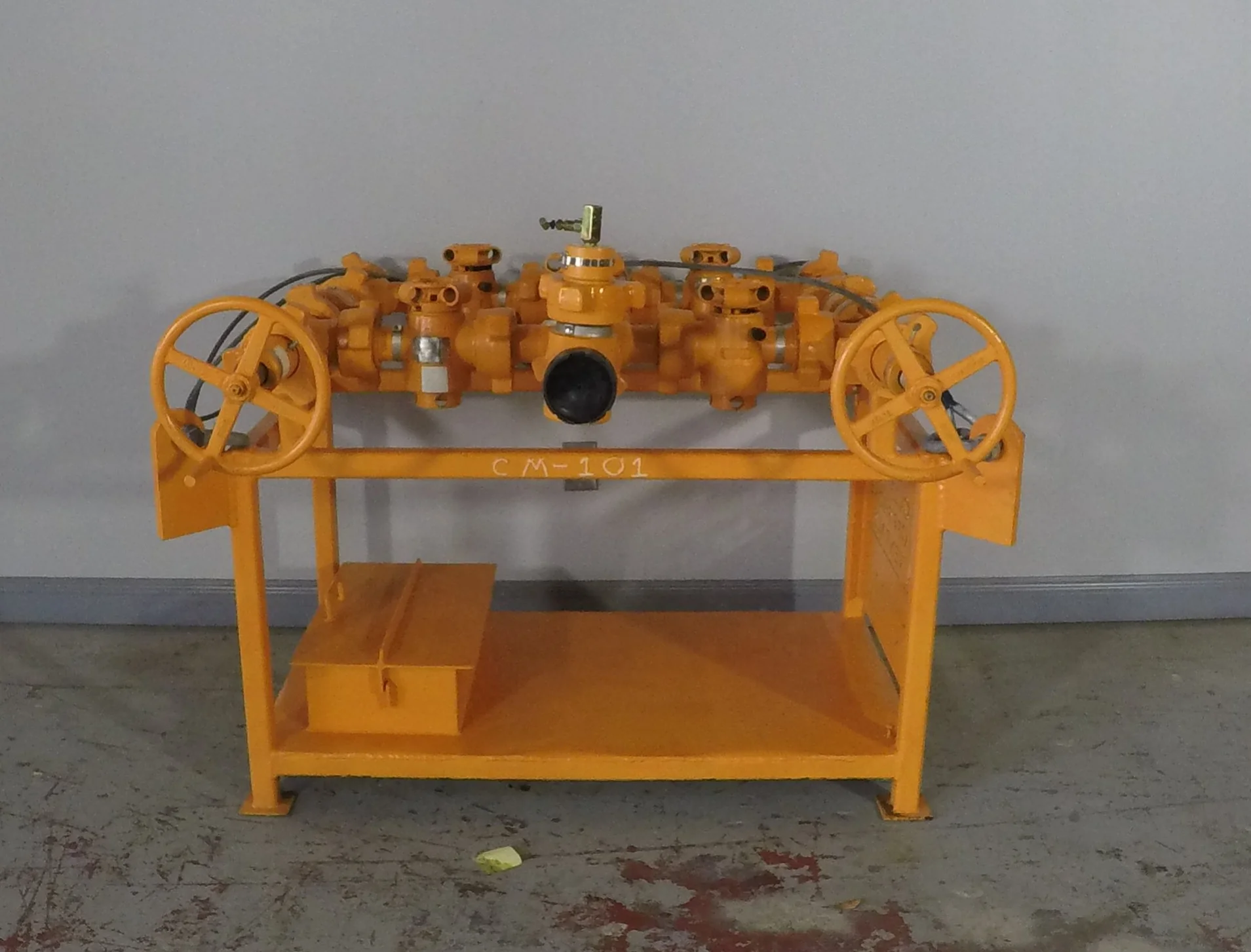

Dual Choke Manifolds
Architecture
|
Featuring 1502-rated Chiksan construction, dual adjustable choke valves for precise flow control, and multiple plug valve configurations, our dual choke manifolds deliver safe, versatile pressure management solutions for well control, flowback, and production operations.
Category
Flow Control & Deck Equipment
Specs
1502 2” Chiksan Manifold
4-2x1” Plug Valves
1-2x2” Plug Valve
2-Adjustable Choke Valves
Precision Flow & Pressure Control Our dual choke manifold systems provide critical flow control capability with two independent adjustable choke valves that allow precise management of well pressures during flowback, testing, and production operations. The dual-choke configuration enables operators to maintain one choke in active service while the second stands ready as immediate backup or allows incremental flow adjustments by staging chokes in series or parallel configurations. This redundancy and flexibility prove essential during critical well control situations where uninterrupted flow management protects personnel, equipment, and the wellbore itself from dangerous pressure excursions or uncontrolled flow conditions that can escalate into emergencies.
Versatile Valve Configuration Maximize operational flexibility with manifold packages featuring four 2"x1" plug valves, one 2"x2" plug valve, and two adjustable choke valves in a compact, integrated assembly. This comprehensive valve arrangement provides multiple flow path options—directing flow to flare systems, separation equipment, or test manifolds while maintaining isolation capability for equipment changes or maintenance. The 2"x1" reducing valves enable connections to various downstream equipment sizes, while the 2"x2" full-bore valve maintains maximum flow capacity when needed. The multiple plug valves allow safe isolation of the adjustable chokes for inspection, adjustment, or replacement without complete system shutdown, minimizing non-productive time during extended operations.
High-Pressure 1502 Construction Trust the robust engineering of 1502-rated Chiksan manifold construction designed specifically for high-pressure well control and production applications. The 1502 pressure rating provides substantial safety margin during flowback operations, pressure testing, and unexpected well conditions where transient pressure spikes can exceed normal operating parameters. The Chiksan iron connections ensure compatibility with standard flowback equipment, allowing seamless integration with flowlines, separators, and existing wellhead equipment without adapter requirements or compatibility concerns. This heavy-duty construction withstands the erosive effects of sand-laden production fluids, the thermal cycling of temperature variations, and the mechanical stresses of repeated operation in demanding offshore environments.
Enhanced Operational Safety Well control operations demand equipment that delivers both performance and safety under extreme conditions. Our dual choke manifolds provide the redundancy and control capability essential for managing potentially dangerous well pressures during initial flowback, kick circulation, and abnormal pressure situations. The adjustable chokes allow gradual, controlled pressure drawdown that protects casing, wellhead equipment, and surface facilities from damage while preventing formation sand production that can erode equipment and create flow restrictions. Multiple plug valves enable positive isolation for maintenance activities, equipment changes, and emergency shutdowns, while the integrated manifold design eliminates multiple connection points that represent potential leak paths and failure points in improvised piping arrangements.
Complete Flow Control Solution Deploy professional-grade well control capability with manifold assemblies that arrive fully configured and pressure-tested for immediate service. The compact manifold design consolidates multiple valves and chokes into a manageable footprint that fits within congested wellsite areas and platform deck spaces, while the pre-assembled configuration eliminates field fabrication time and welding requirements that delay operations and introduce quality concerns. Whether managing flowback from hydraulic fracturing operations, conducting extended well tests, or controlling production from high-pressure reservoirs, these dual choke manifolds provide the precise flow management and safety redundancy that well operations demand. Backed by our inventory of replacement choke trims, spare parts availability, and 24/7 technical support, you get dependable well control equipment that protects your operation, personnel, and assets throughout every phase of well completion, testing, and production activities.
