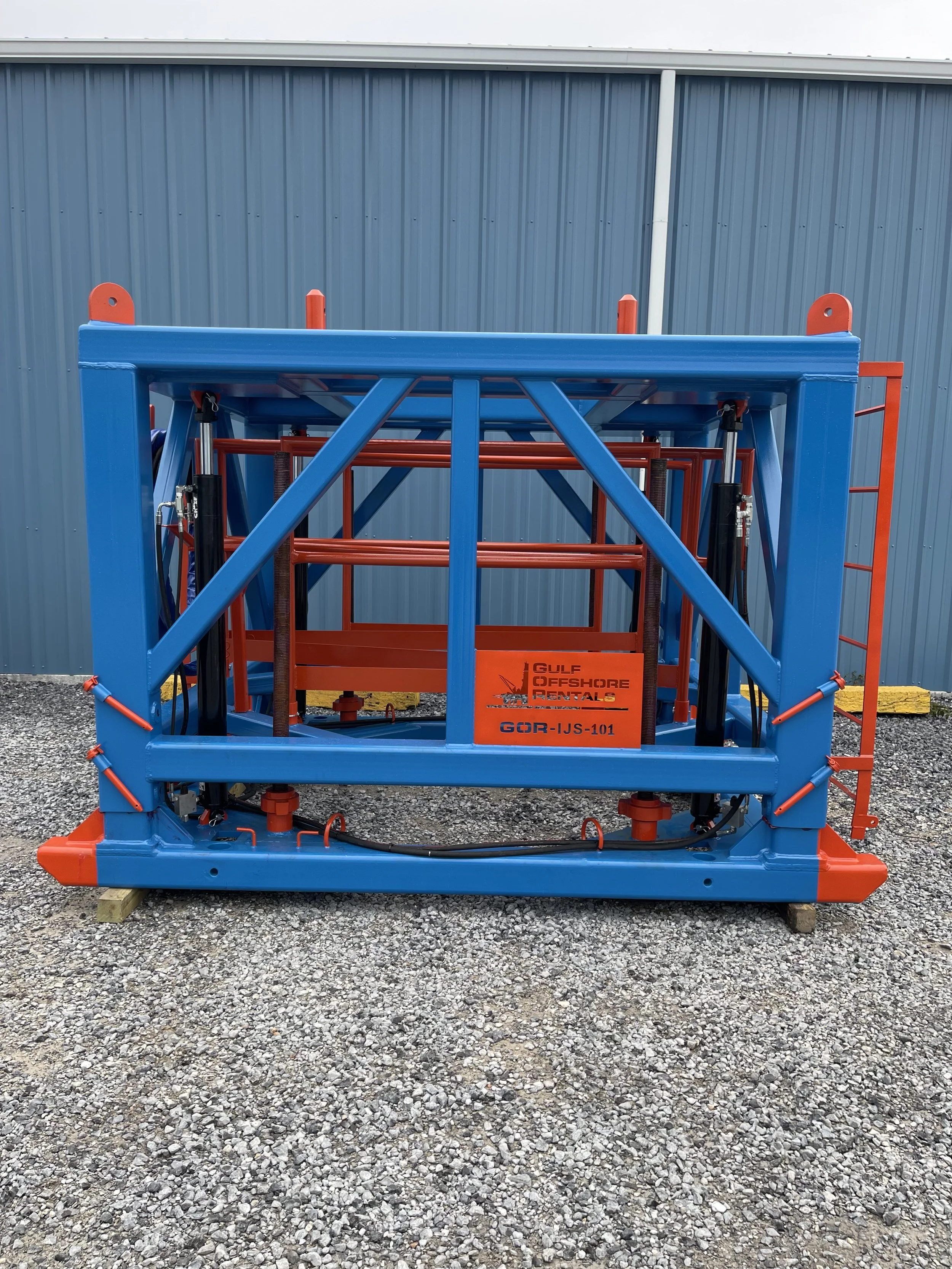

Hydraulic Operated Jacking Stand
Architecture
|
Featuring four 48" stroke hydraulic cylinders, multi-injector head compatibility, and adjustable sub-structure heights from 2 to 6 feet, our hydraulic jacking stands deliver safe, efficient lifting solutions for coil tubing operations across diverse offshore applications.
Category
Pneumatic & Hydraulic Tools
Specs
Jacking stand fits the following coil tubing injector heads.
• Hydra Rig 660 Injector head.
• Hydra Rig 680 Injector head.
• Also comes equipped with an adapter to fit an S&S M80 Injector head.
Jacking Stand Operations.
4 - Hydraulic Lifting Cylinders: 48" Stroke 3000psi Max W.P.
1 - Three Bank Lo-Boy working stations/Hydraulic Hoses
***All Hydraulic extension hoses are included with the unit.

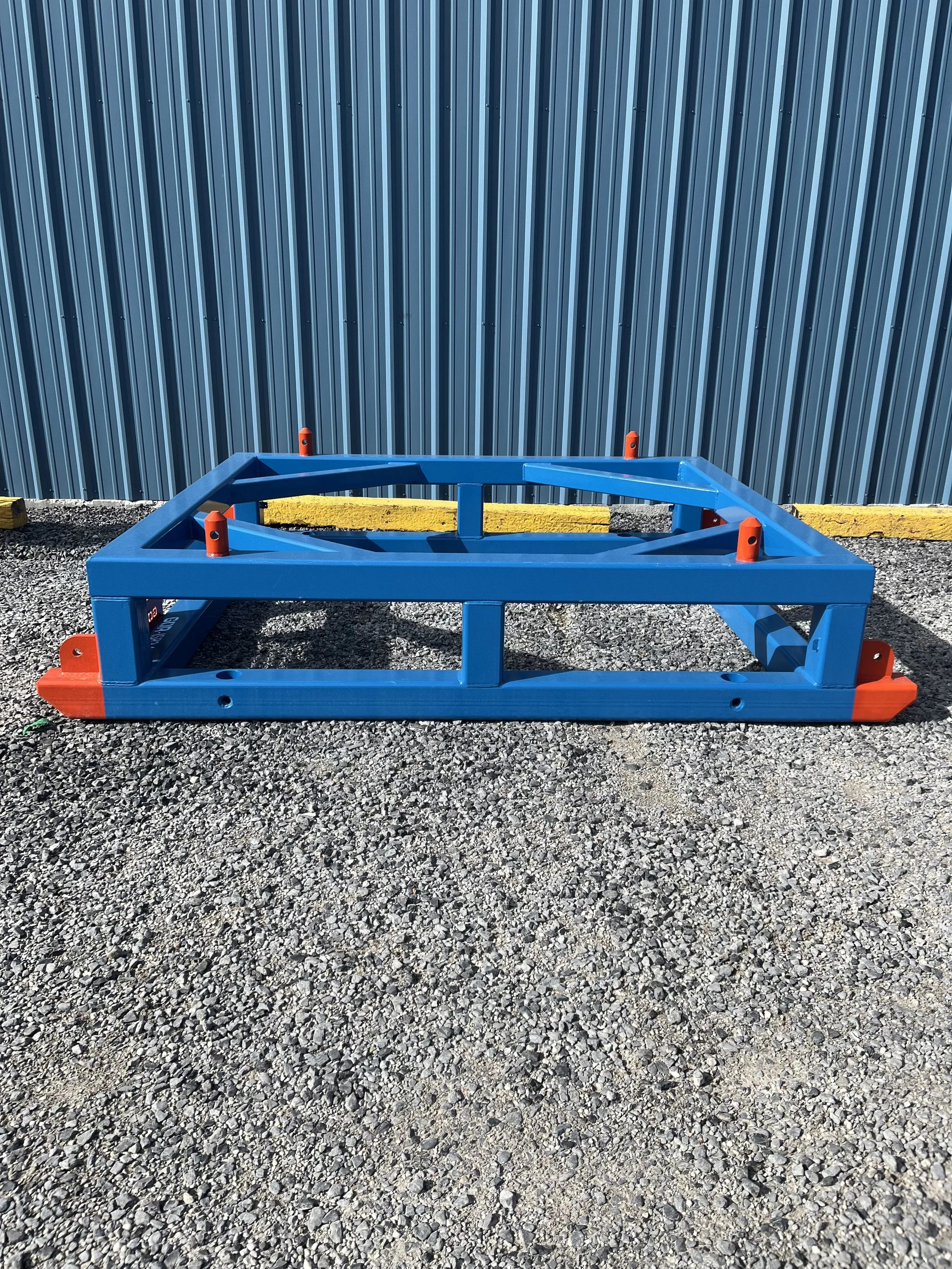

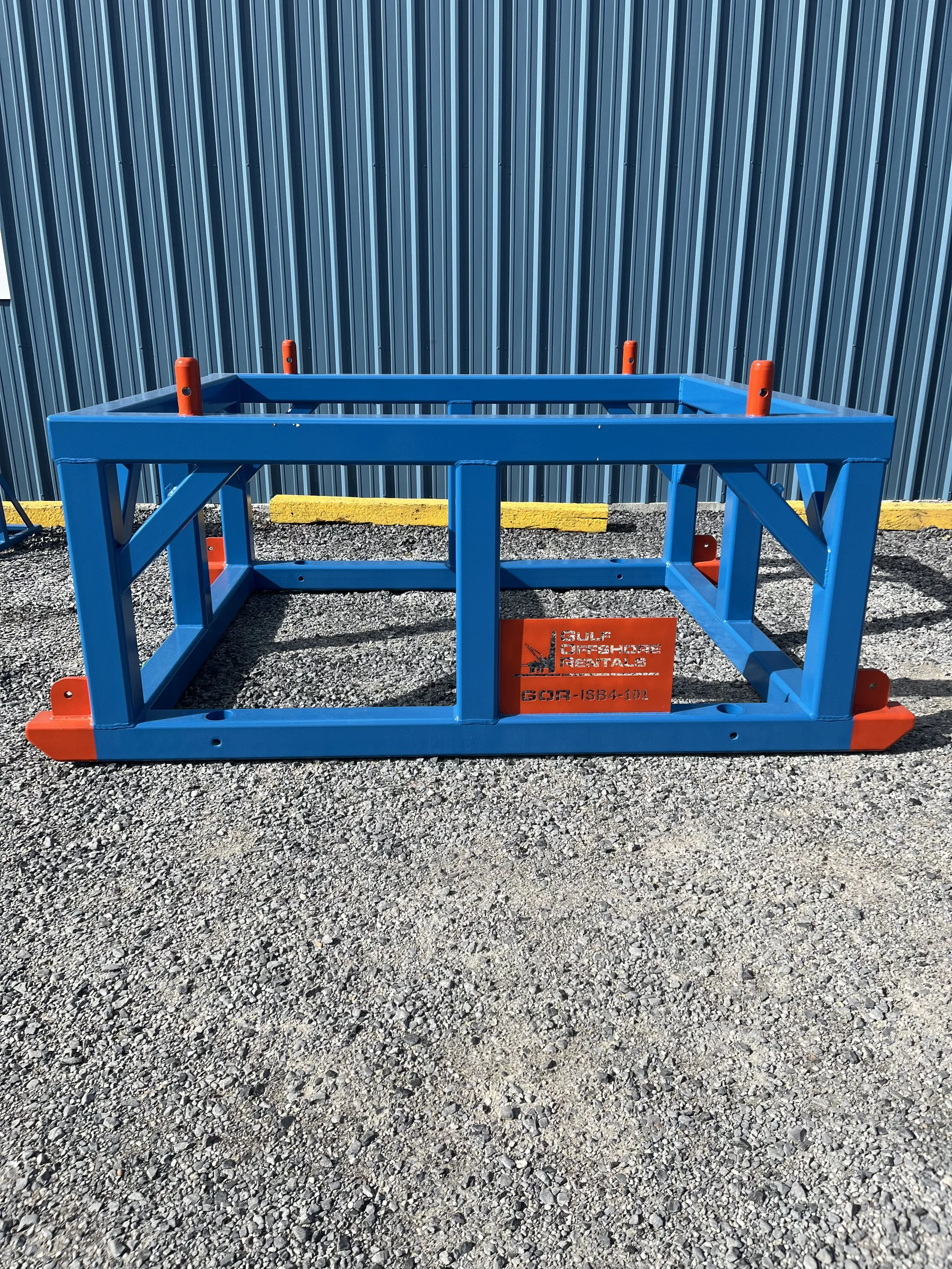

Jacking Stand Spacer Options Available
2-Ft. Tall Sub-Structures
4 Ft. Tall Sub-Structures
6 Ft. Tall Sub-Structures
Universal Compatibility & Adaptability Our hydraulic operated jacking stands provide seamless integration with multiple coil tubing injector configurations, eliminating equipment compatibility concerns during coil tubing operations. Engineered to fit Hydra Rig 660 and 680 injector heads plus equipped with an adapter for S&S M80 injector heads, these versatile jacking systems accommodate various equipment specifications across different contractors and platforms. The universal design reduces logistical complexity when working with multiple service providers or transitioning between different wells, ensuring your lifting solution adapts to the equipment on location rather than requiring equipment changes to match the jacking stand.
Powerful Hydraulic Performance Four synchronized hydraulic lifting cylinders deliver robust 48-inch stroke capacity with 3,000 PSI maximum working pressure, providing the controlled power needed to safely raise and position heavy coil tubing injector heads during operations. The four-point lift design ensures balanced load distribution and stable positioning throughout the full stroke range, preventing dangerous tipping or uneven loading that can compromise equipment and personnel safety. This substantial lifting capacity handles even the heaviest injector configurations while maintaining the precision control essential for alignment and positioning during coil tubing setup and operations.
Complete Turnkey Hydraulic System Arrive on location ready to operate with our comprehensive jacking stand packages. Each unit includes a three-bank Lo-Boy hydraulic working station with all necessary control valves for independent cylinder operation and synchronized lifting functions. All hydraulic extension hoses come included with the rental, eliminating the frustration of missing connections or incompatible fittings that delay operations. The organized hydraulic system with clearly identified connections allows rapid setup and reduces troubleshooting time, getting your coil tubing operations underway quickly and minimizing non-productive rig time that impacts project economics.
Adjustable Height Configuration Options Customize your working height with available sub-structure spacer options in 2-foot, 4-foot, and 6-foot configurations. This adjustability accommodates various wellhead heights, platform deck configurations, and operational requirements without requiring different jacking stand rentals. Whether working on low-profile wellheads requiring minimal lift or elevated installations needing maximum height, the modular sub-structure system provides the exact working elevation your operation demands. The stackable spacer design allows quick height changes between wells on the same platform, maximizing equipment utilization and eliminating the need to mobilize multiple jacking stands for different well configurations.
Operational Safety & Reliability Coil tubing operations demand lifting equipment that delivers both power and precision under challenging offshore conditions. Our hydraulic jacking stands feature robust construction designed to withstand the rigors of repeated use in marine environments while maintaining safe, controlled operation. The three-bank control station allows operators to manage individual cylinder functions or execute synchronized lifts with complete control, while the substantial stroke length minimizes the need for dangerous repositioning mid-lift. Backed by our preventive maintenance program and 24/7 technical support, these jacking stands provide the reliable performance essential for safe coil tubing operations, protecting both personnel and expensive downhole equipment throughout your intervention work.
