Light Plants
Architecture
|

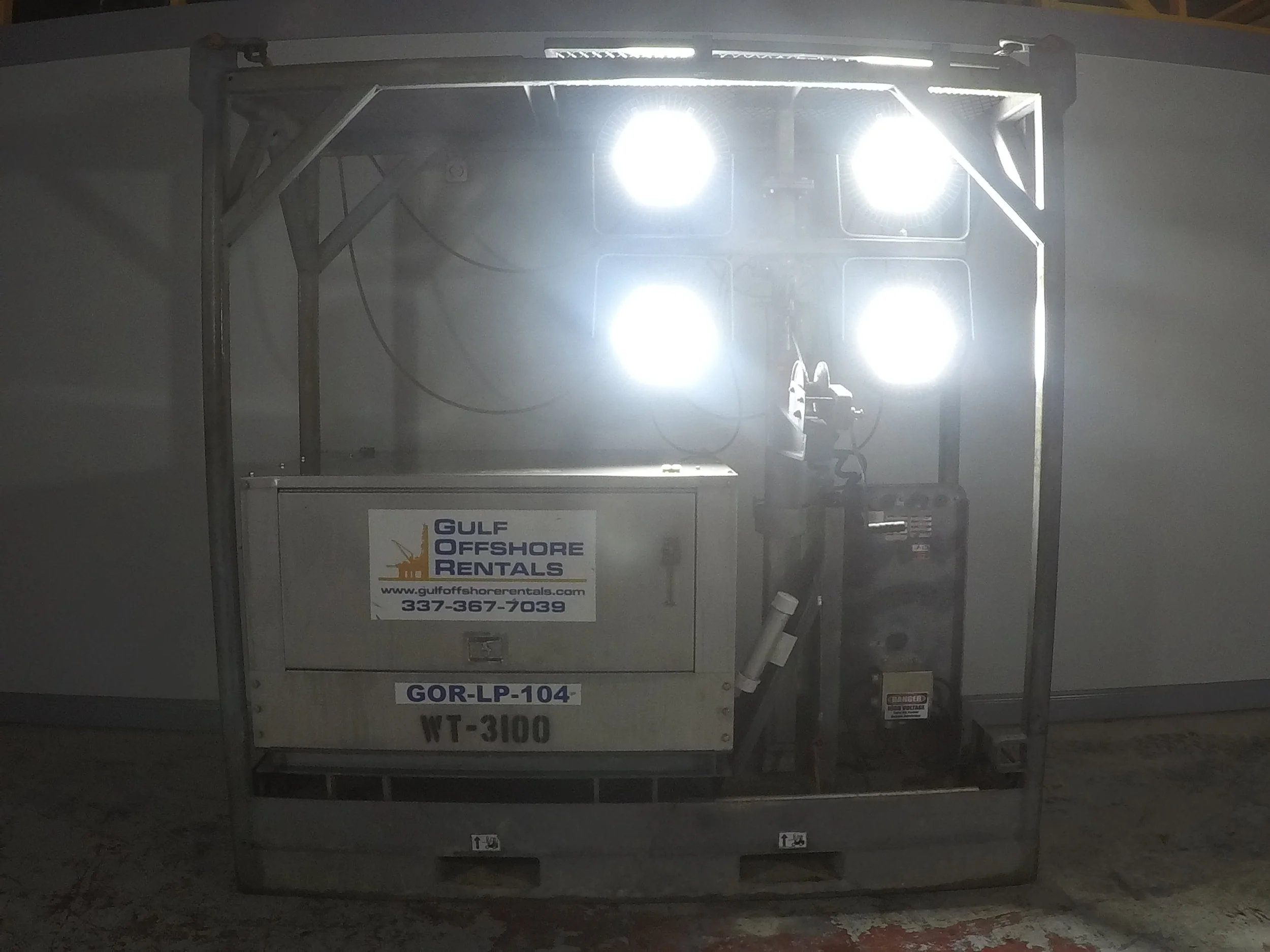

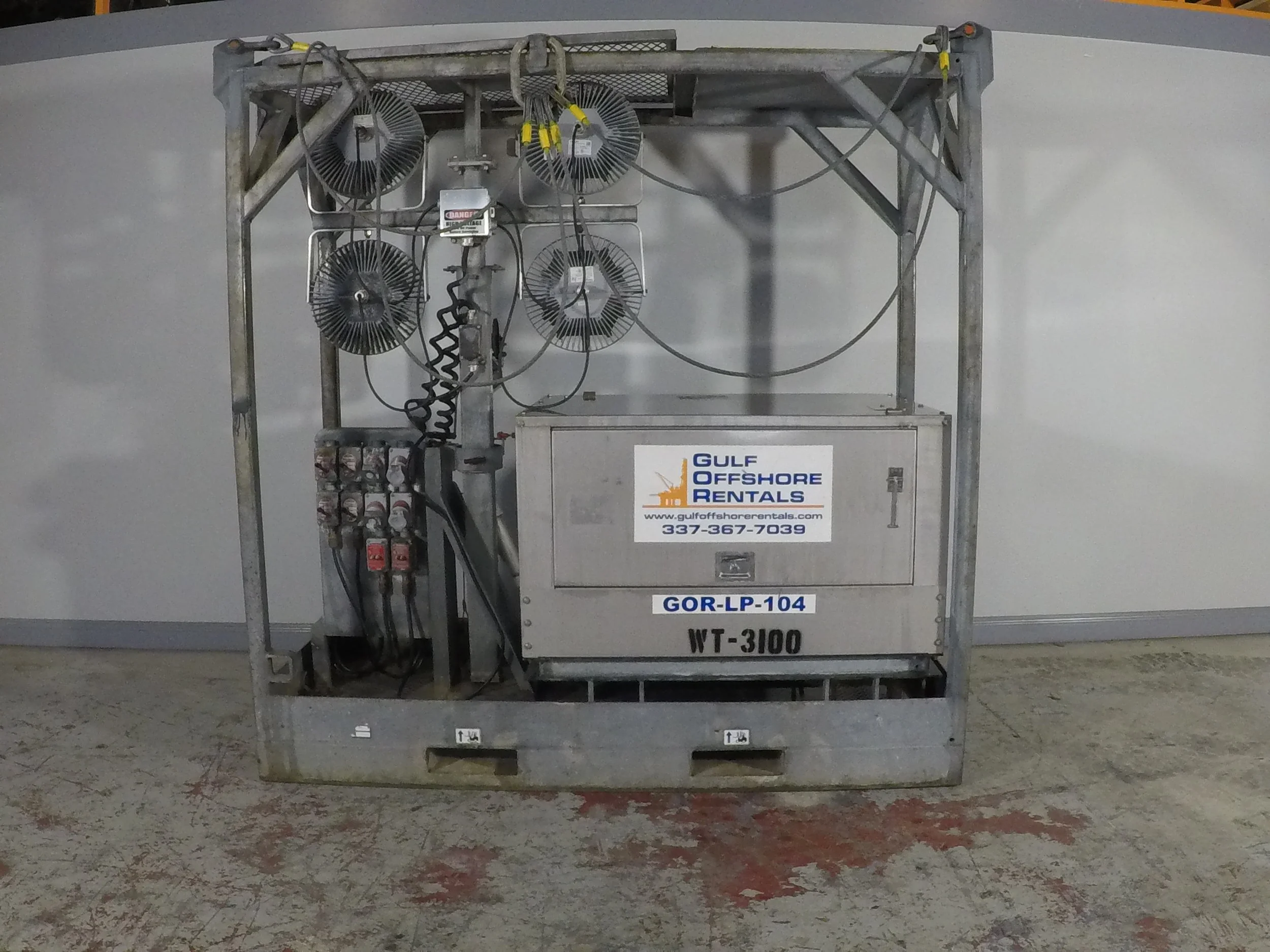

Featuring 8KW power generation, four LED high bay lights on a 16-foot telescoping boom with 360-degree rotation, and explosion-proof receptacles, our light plants deliver comprehensive illumination and electrical power for demanding offshore operations in classified areas.
Category
Power, Lighting & Ventilation
Specs
ENGINE: Kubota (tier 3 certified) diesel engine, D1005, 3 cylinder liquid cooled diesel engine (16 hp @
1800 rpm), mounted radiator, coolant recovery tank, air cleaner, Chalwyn automatic and manual air intake
shutdown, muffler, Super Trapp spark arrestor, 12 volt electric start, electric fuel pump, Racor primary fuel
filter, secondary spin on fuel filter, F.W. Murphy engine controls, hi temp and low oil shutdown, hour meter,
EZ oil drain valve
GENERATOR: Newage 8KW dedicated single phase, 1800 rpm generator, 120/240V, AC brushless, epoxy
coated, automatic voltage regulator, self excited, dynamically balanced rotor, fan cooled

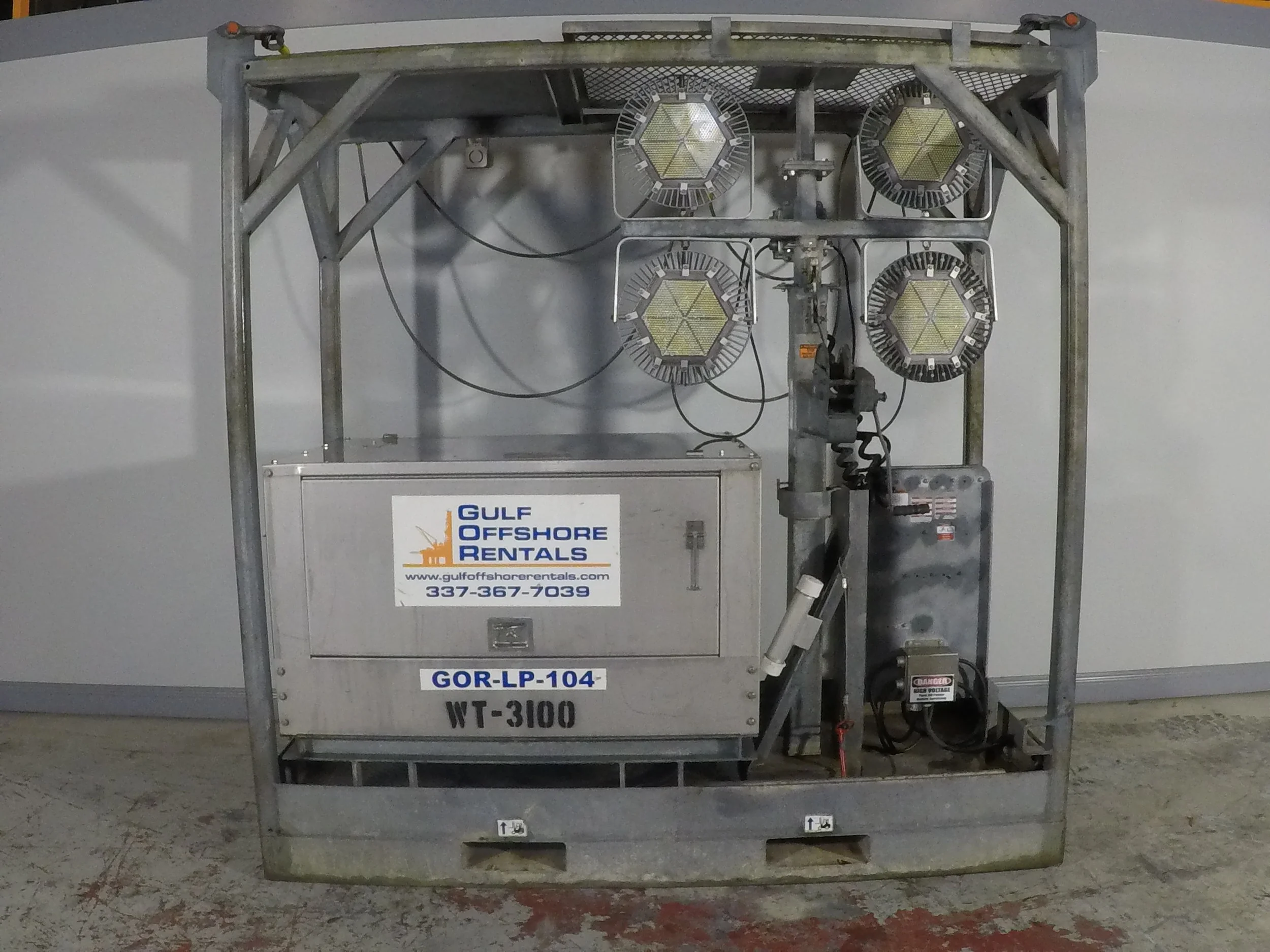

LIGHTING: 4 – Dialight High Bay LED Lights
RECEPTICLES: 3 – 110V, 1 – 240V Kilopak explosion proof receptacles, (Class1 & 2), circuit breaker
protected, 2 tumbler switch for on/off light control, ground fault protection for receptacles
SKID: Structural steel skid with 3”x8”x3/16” box tubing base, 2”x2”x 3/16” tubing roll frame, 4 corner lift
pad eyes with 572 plate strength, ¾” width, 7/8” shackle pin hole drilled, , 4”x10”x3/16 box tubing forklift
pockets, 2” above bottom of skid, expanded metal top, beveled drip pan with bottom drain, aluminum enclosure
with side inspection doors, stableflex neoprene vibration isolators, 30 gallon aluminum CG approved fuel tank
with fuel gauge, aluminum storage box, stainless steel hardware.

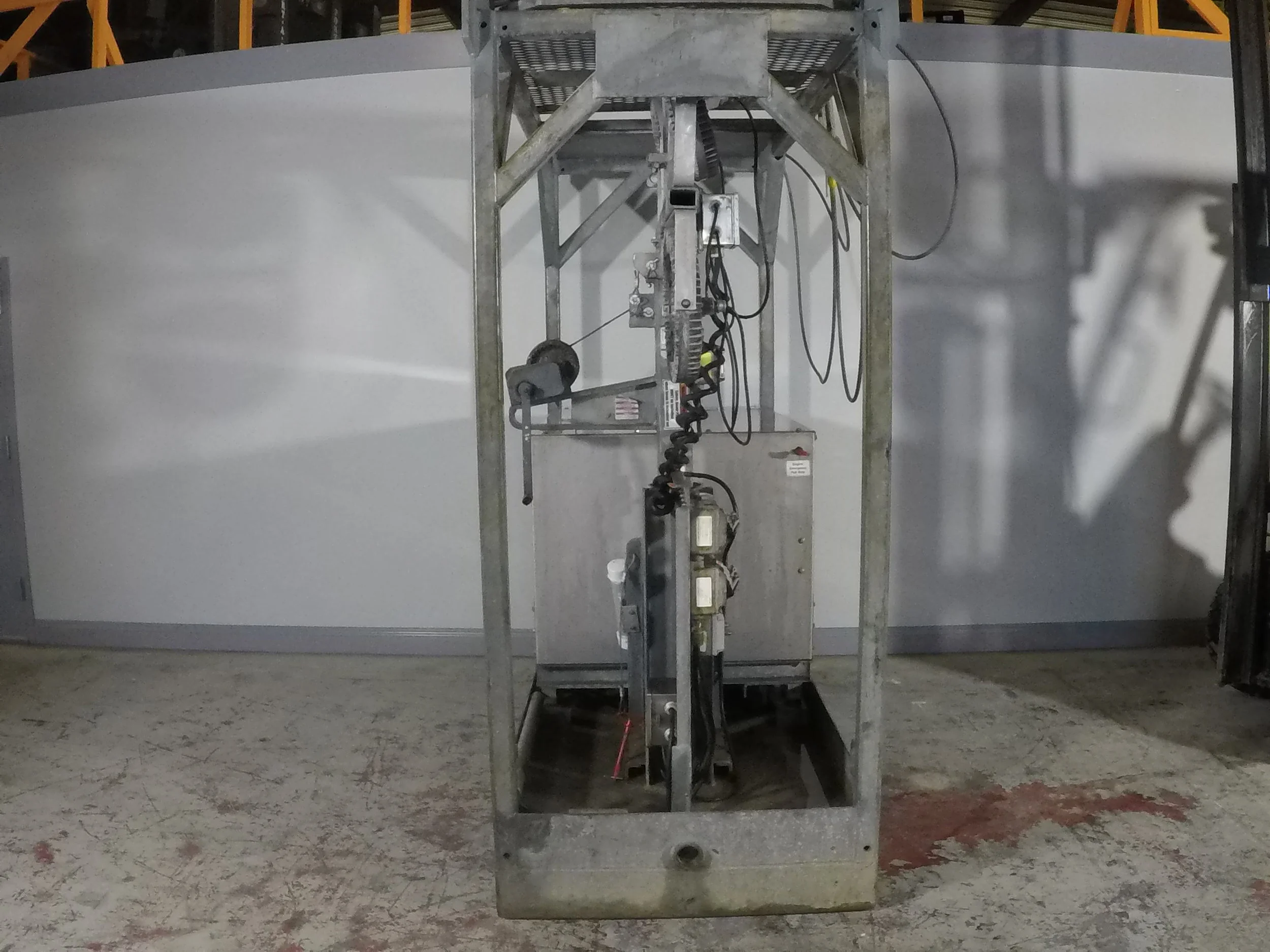

BOOM: (PATENT PENDING) Structural steel all welded and galvanized 16ft telescoping boom, single
stage with Teflon guides, rotating mast, 360 degree lighting capability, hand winch with locking break, ¼”
cable with stainless steel pulleys, locking pin when boom is extended, expanded metal winch guard
DIMENSIONS: L 64” x W 62” x H 84”
WEIGHT: 2,800 LBS./ 3,100 LBS.
Powerful Illumination & Coverage Our light plant packages provide exceptional worksite illumination through four Dialight high bay LED lights mounted on a patent-pending 16-foot telescoping boom with 360-degree rotating capability. This innovative design delivers comprehensive lighting coverage across large work areas, eliminating dark zones and shadow areas that compromise safety and work quality during nighttime operations, maintenance activities, and emergency repairs. The telescoping boom extends to position lights precisely where needed—over wellheads, equipment work areas, or deck operations—while the rotating mast allows operators to adjust lighting direction without repositioning the entire unit, maximizing illumination efficiency and reducing setup time during time-sensitive offshore work.
Integrated Power Generation Beyond lighting, each unit functions as a complete 8KW power station with dedicated single-phase 120/240V generation capability. Three 110V and one 240V explosion-proof Kilopak receptacles (Class 1 & 2 rated) provide circuit breaker-protected power for tools, equipment, and auxiliary systems in hazardous offshore environments. The ground fault protection and individual tumbler switches for light control allow safe, independent operation of lighting and power functions. This dual-purpose design eliminates the need for separate generators and light towers, reducing equipment rental costs, deck space requirements, and mobilization complexity while providing reliable electrical power for welding machines, grinders, pumps, and other equipment operating alongside illumination needs.
Proven Kubota Reliability Trust the proven performance of Kubota Tier 3 certified diesel power—the industry standard for portable power applications. The three-cylinder liquid-cooled D1005 engine delivers 16 horsepower at 1800 RPM with professional-grade components including mounted radiator, coolant recovery system, Racor primary fuel filtration, and F.W. Murphy engine controls with automatic high-temperature and low-oil pressure shutdown protection. The 12-volt electric start, electric fuel pump, and hour meter facilitate easy operation and maintenance tracking, while the Chalwyn automatic and manual air intake shutdown with Super Trapp spark arrestor provides multiple layers of safety protection essential for offshore operations in potentially hazardous atmospheres.
Offshore-Ready Construction Engineered specifically for the demanding marine environment, our light plants feature heavy-duty structural steel skid construction with 3"x8" box tubing base, welded roll frame, and four corner lift pad eyes rated for safe crane operations during platform mobilization. The 4"x10" forklift pockets enable efficient deck positioning, while the aluminum enclosure with side inspection doors protects critical components from saltwater spray and humidity without restricting maintenance access. Stableflex neoprene vibration isolators minimize operational vibration and noise, the beveled drip pan with bottom drain manages fluid containment, and the 30-gallon CG-approved aluminum fuel tank with gauge provides extended runtime between refueling—critical for continuous overnight operations and remote locations with limited fuel access.
Complete Lighting & Power Solution Deploy professional-grade illumination and electrical power anywhere on your platform with compact, self-contained units measuring just 64"L x 62"W x 84"H and weighing approximately 2,800-3,100 pounds. The all-welded galvanized telescoping boom resists corrosion in marine environments, while the hand winch with locking brake and stainless steel pulleys allows safe, controlled boom extension and retraction. Teflon guides ensure smooth telescoping action, and the locking pin secures the boom when fully extended against wind loads and platform motion. Whether supporting nighttime drilling operations, emergency repairs, construction activities, or routine maintenance in remote platform areas, these light plants provide the reliable illumination and auxiliary power that keeps offshore operations productive and safe around the clock. Backed by our preventive maintenance program and 24/7 support, you get dependable performance when darkness and power demands won't wait.
